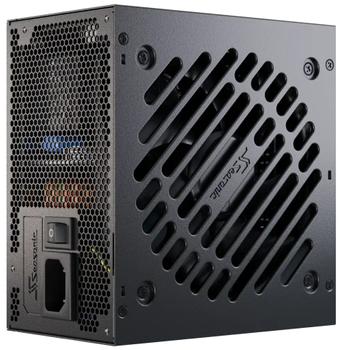

SEASONIC Core GX 650-V2 - 650W ATX 3.1
|
|
SEASONIC Core GX 650-V2 - 650W ATX 3.1
Varenr.:
SRP-CGX651-A5A32SF
-
Strøm
650W
-
80 PLUS certification
80 PLUS Gold
|
CORE GX ATX 3 (2024) 650W
Features:
- The CORE GX ATX 3 (2024) Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
- Warranty 7 Years
- Fully Modular Cabling
- Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
- ATX Specifications ATX 3.1 & PCIe 5.1
Specifications:
80PLUS®
Cybenetics Efficiency Level
Cybenetics Noise Level
Form Factor
Dimensions
Fan Information - Fan Size 120 mm
- Fan Control Smart and Silent Fan Control
- Fan Bearing Hydro Dynamic Bearing
- Life Expectancy 25,000 hours at 40 °C, 15 % — 65 % RH
Cable Information - Modularity Fully Modular
- Cable type Individual Black Cables with Braided Pattern
Electrical Features - Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
- MTBF @ 25 °C, excl. fan 100,000 hours
- AC Input Full Range
- Protection OPP, OCP, OTP, OVP, SCP, UVP
Safety and Environmental - Safety and EMC BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
- Environmental Compliance Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Warranty
AC Input
- 100 V - 240 V
- 9 - 4.5 A
- 50 Hz - 60 Hz
DC Output
- +3.3 V / 20 A
- +5 V / 20 A
- +12 V / 54 A
- -12 V / 0.3 A
- +5 VSB / 3 A
Total continuous power
